Restyaboard¶

In this article:

• Restyaboard. Key Features
• Deployment Features
• Getting Started After Deploying Restyaboard
• First Login and Getting Started
• Ordering a Server with Restyaboard via API

Restyaboard. Key Features¶

• Visual Task Management: Intuitive interface with boards, lists, and cards to organize workflows;
• Collaboration: Ability to invite team members, assign tasks, and track progress;
• Flexible Configuration: Creation of custom fields, tags, and categories for project-specific adaptation;
• Attachments and Comments: Attaching files to cards and discussing tasks within the interface;
• Calendar and Deadlines: Setting deadlines with a calendar view of tasks;
• Checklists: Creating subtasks within cards for detailed task breakdowns;
• Filtering and Search: Quick search of cards by various parameters;
• Notifications: Automatic alerts about changes in tasks;
• REST API: Integration capabilities with external systems and automation features;
• Open Source Code: Full access to the code on GitHub.

Deployment Features¶

• Containerized Deployment - The system is provided with Docker and pre-configured containers for quick startup.
• Key Containers:
  • restya_app - Main Restyaboard application container (restyaplatform/restyaboard:v1.7.1);
  • restya_db - PostgreSQL 15 database;
  • certproxy-nginx-1 - Nginx web server with SSL support via Certbot (jonasal/nginx-certbot:latest).
• Network Configuration:
  • External ports: 80 (HTTP), 443 (HTTPS);
  • Internal Restyaboard port: 8080 (forwarded to host: 127.0.0.1:8080->80/tcp);
  • Automatic SSL certificate acquisition via Let's Encrypt.
• Key Directories:
  • /opt/restyaboard - Main installation directory on the host;
  • /var/lib/nginx/html - Root directory of the web application inside the container;
  • /var/lib/nginx/html/sql - SQL scripts for database initialization;
  • /etc/nginx/conf.d - Nginx configuration files;
  • /data/nginx/user_conf.d - Custom Nginx configurations on the host.

Getting Started After Deploying Restyaboard¶

After payment of your order to the email address registered with us, you will receive a notification that your server is ready for use. It will include the VPS IP address as well as login and password information for access. Our company's clients manage their equipment via the server management panel and API — Invapi.

These credentials can be found in the Information >> Tags tab of the server control panel or in the email sent to you upon server delivery:

• Link for accessing Restyaboard via web interface: located in the webpanel tag;
• Login for accessing Restyaboard: admin;
• Password for accessing Restyaboard: restya;
• Login and Password for server management: sent to your email upon server deployment.

First Login and Getting Started¶

Logging into the System¶

Open a web browser and navigate using the link from the webpanel tag, then enter the credentials.

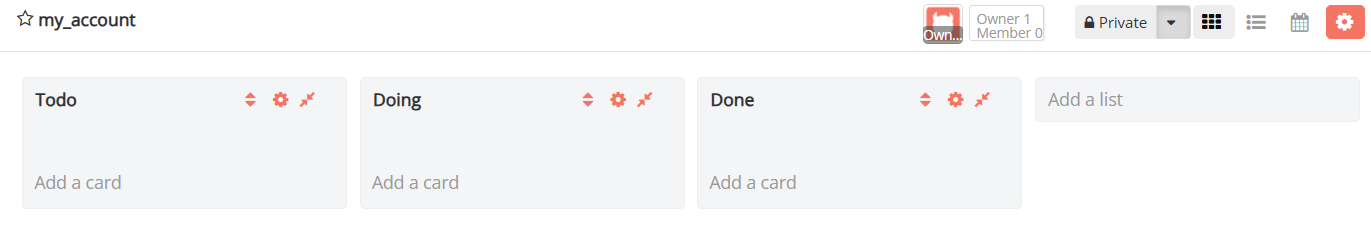

Creating Your First Board¶

After successful authentication:

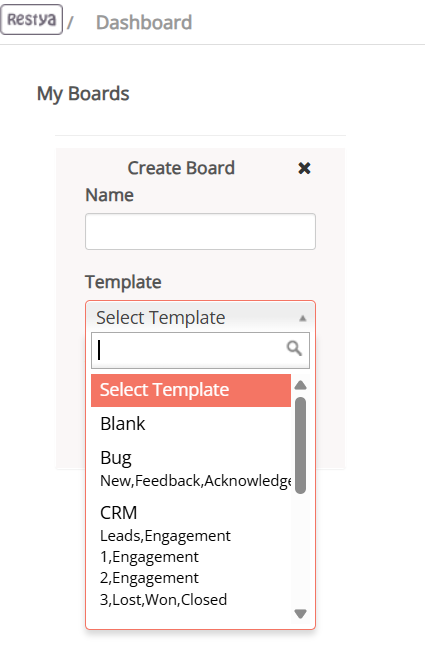

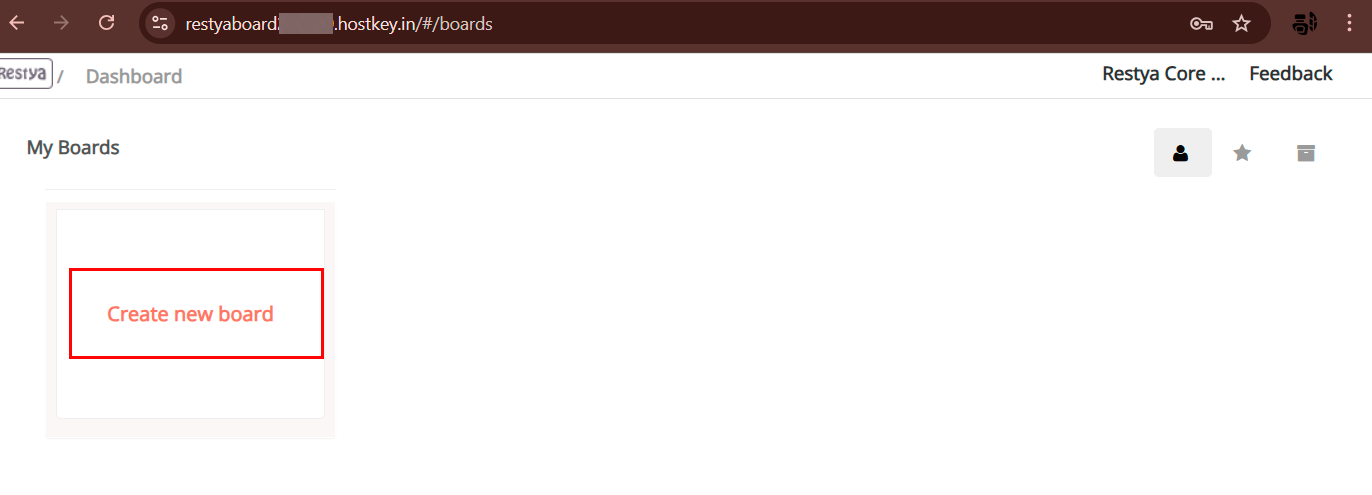

1. Click on Create new board;
2. Enter a name for the board;
3. Select visibility level (private or public);
4. Press Add to create the board.

Ordering a Server with Restyaboard via API¶

To install this software using the API, follow these instructions
